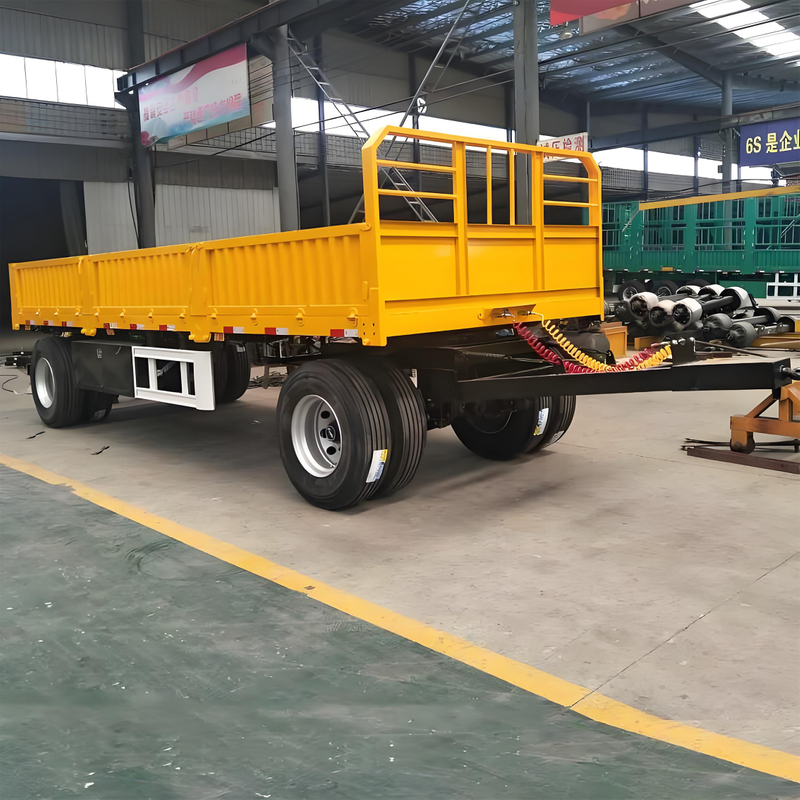

Engineered for efficient transportation of bulk construction materials, the Sidewall Drawbar Dropside Full Trailer combines rugged durability with versatile loading capabilities. Featuring a removable dropside panel system and a 45-ton payload capacity, this trailer is optimized for transporting bricks, steel bars, concrete blocks, and other heavy materials across construction sites and industrial zones. The drawbar configuration ensures tight maneuverability, making it ideal for navigating narrow job sites and urban construction environments.
Adjustable Sidewall Design
Hydraulic Dropside Panels: Three-sided removable panels (front, left, right) with 1.2m height and 500N/m impact resistance, hydraulically actuated for 90° vertical drop (opening time <60 seconds), enabling forklift access from three sides—30% faster unloading than fixed-side trailers.
Modular Side Rail Options: Optional steel mesh panels (50mm aperture) for gravel/aggregate transport or solid steel sheets for secure transit of steel profiles, with quick-release clamps for panel swapping in <10 minutes.
Heavy-Duty Load Performance
Drawbar Suspension System: Rigid drawbar with parabolic leaf springs (10-leaf design, 600mm length), distributing 45-ton payload evenly across dual axles (22.5-ton capacity each), reducing tire wear by 25% on unpaved roads.
High-Strength Steel Frame: Q345B steel construction (yield strength 345 MPa) with 8mm thick cross-members (spaced 300mm apart), tested to 120% load (54 tons) for 500 hours without deformation—compliant with ISO 6683:2013 structural standards.
Safety & Accessibility
Anti-Skid Deck Surface: 6mm checker plate (Rz 30μm roughness, friction coefficient 0.80 dry/0.65 wet), preventing material slippage during transit—tested at 0.3g braking deceleration.
LED Work Lights: 4x 100W LED floodlights (IP67 rated) for nighttime loading, with automatic dusk-to-dawn activation and 200m illumination range.
Maneuverability Enhancements
Short Drawbar Length: 1.8m drawbar pivot radius enables 90° turning within 12m width, ideal for tight construction site access (e.g., urban high-rise projects).
Adjustable Hitch Height: Hydraulic hitch jack (50-150mm vertical adjustment) compatible with all tractor types, reducing hookup time by 50%.
Construction Sites: Transports 20,000 bricks (45 tons), 12m steel beams, and 30m³ concrete blocks between quarries, factories, and job sites, with dropside panels enabling direct forklift unloading into storage areas.
Infrastructure Projects: Hauls gravel, sand, and asphalt aggregates for road construction, with mesh panels preventing material spillage during transit on unpaved routes.
Industrial Logistics: Moves heavy machinery parts (e.g., engine blocks, gearboxes) between manufacturing facilities, with optional load-securing straps (5,000N per strap) for oversized components.
Job Site Efficiency: Dropside design reduces material unloading time by 40% compared to traditional flatbed trailers, a critical advantage for tight construction schedules.
Customizable Configuration: Optional roof canopy (waterproof PVC, 500D thickness) for transporting moisture-sensitive materials (e.g., gypsum boards, cement bags), available in 10m/12m/14m lengths.
Durability Assurance: 3-year structural warranty and 24/7 on-site maintenance support, with wear-resistant components (e.g., replaceable deck mats, reinforced panel hinges) stocked in regional warehouses.
Max Payload | 30-60Tons |
Axles | 3 Axles*13/16Ton,FUWA/BPW or Customization |
Size | 7600*2550*2500mm (Customized) |
Material | Q345B,Beam Height:500mm,Upper Plate:14mm ,Bottom Plate:16mm,Middle:8mm |
Bottom plate thickness | 3mm diamond plate |
Sidewall Thickness | 2mm Q235 steel (Customizable) |
Side wall height | 600mm (Customizable) |
Braking System | Air Dual braking system,with relay valve |
Suspension | Mechanical suspension |
