Designing a heavy-duty chassis requires a delicate balancing act. You must maximize payload capacity without making the trailer itself excessively heavy. This is the "High-Capacity Paradox." If the design is too light, the main beams may crack or deform under the immense pressure of a fully loaded container. If it is too heavy, you lose valuable legal payload capacity and burn more fuel. The cost of failure is high; structural fatigue can lead to catastrophic breakdowns on the highway, endangering cargo and lives.
This article provides a technical framework for evaluating structural quality. We are not teaching you to weld steel yourself. Instead, we equip you with the engineering insights needed to vet suppliers. You will learn exactly what to look for in technical drawings and specifications. This ensures that the Skeleton Semi Trailer manufacturer you choose has engineered their product for true heavy-duty performance rather than just cutting corners.
Material Matters: Why High-Strength Low-Alloy (HSLA) steel (e.g., Q345B or HG60) is non-negotiable for high-tonnage ratings.
The 14/8/16 Rule: The specific flange and web thickness ratios that define a robust main beam.
Welding Integrity: How Submerged Arc Welding prevents the microscopic flaws that lead to catastrophic structural failure.
Component Synergy: Matching axle ratings and suspension stiffness to the chassis design limit.
The foundation of any high-capacity trailer lies in the metallurgy. You cannot build a 60-ton chassis using standard construction-grade iron. The steel must possess specific yield strength properties to flex under load and return to its original shape without permanent deformation.
Many buyers overlook the specific grade of steel listed in the specs. Moving beyond generic "carbon steel" is critical. The industry standard for professional heavy-duty trailers is Q345B. This is a high-strength low-alloy (HSLA) steel with superior toughness compared to standard Q235 steel.
For extreme applications, such as mining logistics or off-road heavy transport, manufacturers may use HG60 or T700 steel. These ultra-high-strength options allow engineers to use thinner plates to reduce tare weight. They maintain the same 40-to-60-ton load rating while lowering the trailer's self-weight. This reduction directly translates to fuel savings and higher legal payload margins.
The main beam, or "I-beam," carries the entire weight of the container. Its geometry determines the trailer’s vertical stiffness. While a standard beam height is 500mm, heavy-duty designs often increase this to 520mm or more to resist bending.
However, height is not the only factor. The thickness ratio of the beam plates is the true indicator of strength. We generally categorize these ratios into "Standard Duty" and "Heavy Duty."
| Component | Standard Duty (40 Tons) | Heavy Duty (60+ Tons) | Function |
|---|---|---|---|
| Upper Plate (Flange) | 14mm | 16mm | Resists compression forces. |
| Middle Plate (Web) | 8mm | 10mm - 12mm | Connects flanges; resists shear forces. |
| Lower Plate (Flange) | 16mm | 18mm - 20mm | Resists tension (stretching) forces. |
Decision Criterion: Do not rely on verbal assurances. During the drawing approval stage, you must verify these specific thickness parameters. If a supplier promises a 60-ton capacity but lists an 8mm middle web, the design is structurally unsound.
Raw material strength is useless if the geometric design fails to distribute stress effectively. A poorly designed chassis will develop cracks at stress concentration points, usually near the suspension hangers or the gooseneck.
Modern engineering demands digital verification before physical production. Reputable manufacturers use Finite Element Analysis (CAE) to simulate stress loads. They input the weight of a fully loaded 40ft container and observe the digital chassis. This software highlights "hot spots"—areas where stress exceeds safe limits. Engineers then reinforce these specific zones rather than blindly adding weight to the entire trailer.

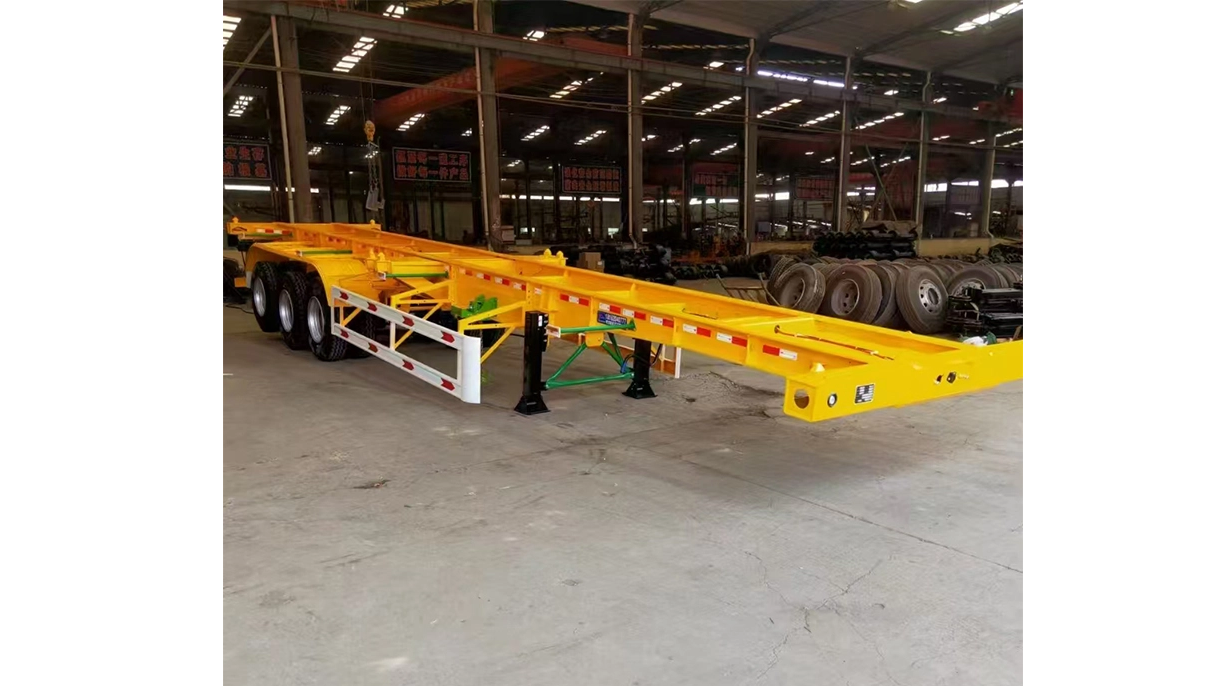

You can identify a high-capacity design by looking at the cross-members and connection points. Standard trailers may space cross-beams widely to save money. A robust Skeleton Semi Trailer features denser cross-member spacing, particularly near the twist lock positions. These are the points where the container transfers its entire weight to the chassis.
Furthermore, look for triangular reinforcements, or "gusset plates." These small triangular steel pieces connect the cross-beams to the main I-beam. They might look insignificant, but they prevent the main beam from twisting (torsion) when the truck turns corners. Without them, the repetitive twisting motion fatigues the metal, eventually leading to cracks.
For 45ft trailers or High-Cube container transport, a gooseneck design is common. This shape lowers the chassis height to accommodate taller cargo. However, the "step" shape in the beam creates a natural weak point. Engineers must reinforce the transition area where the beam narrows. A reinforced gooseneck lowers the center of gravity for stability but must maintain structural continuity to handle the vertical load.
Even the best engineering drawings fail if the manufacturing execution is poor. The method of cutting and welding the steel defines the fatigue life of the trailer.
Traditional flame cutting often leaves rough, jagged edges on steel plates. These microscopic irregularities act as "stress risers," where cracks initiate under heavy loads. High-end manufacturers utilize Laser or Plasma cutting technologies. These methods ensure the steel edges are perfectly smooth and free of micro-fissures before welding even begins.
The welding of the main beam is the most critical process step. Manual welding is inconsistent; it relies on the steady hand of the operator. For high-capacity skeletal trailers, Automatic Submerged Arc Welding is superior. This machine-driven process ensures deep penetration and uniform heat distribution.
Uniform heat is vital. Uneven heating causes the steel plates to warp, creating a "wavy" main beam. A distorted beam cannot carry vertical loads efficiently. Additionally, manufacturers must perform NDT (Non-Destructive Testing). Using ultrasonic or X-ray flaw detection, they verify that the main welds have zero porosity. A single air bubble inside a weld can become the starting point for a snapped beam.
Corrosion is the silent killer of load capacity. As rust eats away at steel thickness, the trailer’s rating drops year over year. The gold standard for prevention is Sandblasting (SA2.5 standard). This process blasts away mill scale and impurities, creating a rough surface that allows the primer to bond tightly. Paint applied directly over smooth, untreated steel will flake off, exposing the chassis to the elements.
The chassis frame supports the load, but the running gear must move it. The axle and suspension configuration must match the structural design limit.
Choosing the right axle rating is an exercise in safety factors. Common options include 13-ton, 16-ton, and 20-ton axles from brands like FUWA or BPW. For a trailer rated at 40 tons, using three 13-ton axles provides a theoretical combined capacity of 39 tons. This leaves zero margin for error. A safer, heavy-duty specification would use three 16-ton axles (48 tons total). This provides an "overload insurance" buffer, protecting the system from damage during accidental overloading.
Suspension choice depends on your operating environment:
Mechanical Leaf Spring: This is the standard for pure load capacity and durability. In rough terrain, multi-layer leaf springs (e.g., 10 layers x 13mm thickness) absorb massive shocks without failing.
Air Suspension: This offers a smoother ride, protecting sensitive cargo. However, you must check the airbag pressure rating. Air bags have limits; exceeding them can cause a blowout under maximum load.
Tires are often the first point of failure. A reinforced chassis serves no purpose if the tires blow out at 40 tons. You must ensure the tire ply rating matches the intended load. Standard tires might be 14PR (Ply Rating), but high-capacity designs require 16PR or 18PR tires. These thicker sidewalls resist bulging and heat buildup under heavy weights.
Designing for capacity involves respecting the law. A trailer that can physically carry 80 tons is useless if it is illegal to drive on public roads.
Design parameters must align with regional standards such as GB1589-2016 in China, ISO standards internationally, or local weight limits like the US Bridge Law. There is a danger in over-designing. If you build a chassis capable of holding 70 tons, the trailer itself becomes incredibly heavy. This extra tare weight reduces the legal payload you can carry. You end up with a strong trailer that earns less revenue per trip.
In reality, trailers face abuse. Cranes drop containers onto the chassis, creating dynamic shock loads far higher than the static weight. Drivers may accidentally overload a container. Manufacturers account for this by designing with a "Safety Factor," typically 1.5 times the rated load. This ensures the trailer survives daily operational hazards without immediate failure.
Achieving high loading capacity is not simply about adding more steel to a frame. It requires an intelligent combination of high-grade materials, precise welding automation, and correct component matching. A heavier trailer is not always a stronger trailer; a well-engineered one is.
From an ROI perspective, investing in a properly engineered Skeleton Semi Trailer lowers your Total Cost of Ownership (TCO). You avoid expensive mid-life structural repairs like beam welding and enjoy a higher resale value when upgrading your fleet. Before finalizing any order, advise your procurement team to request specific steel mill certificates and welding inspection reports. These documents are your proof that the engineering matches the sales pitch.
A: A standard 3-axle 40ft skeleton trailer is typically rated for 40 to 60 tons depending on the beam thickness and axle configuration. However, legal road limits often restrict this to lower values (e.g., 40-44 tons Gross Combination Mass).
A: The gooseneck design lowers the chassis height to accommodate High-Cube containers. While it lowers the center of gravity (improving stability), the "step" in the chassis requires extra reinforcement to maintain the same vertical load capacity as a straight-beam trailer.
A: Q345B is a low-alloy high-strength steel. It offers a higher yield strength than standard Q235 steel, allowing the trailer to carry heavier loads without the chassis beams permanently deforming (bending) under stress.
A: Yes. For off-road or terminal use, a Skeleton Semi Trailer manufacturer can design "bomb cart" style trailers with reinforced 16mm/18mm beams and heavy-duty bogie suspension to handle 65-70 tons, though these are generally not street-legal for highway use.
