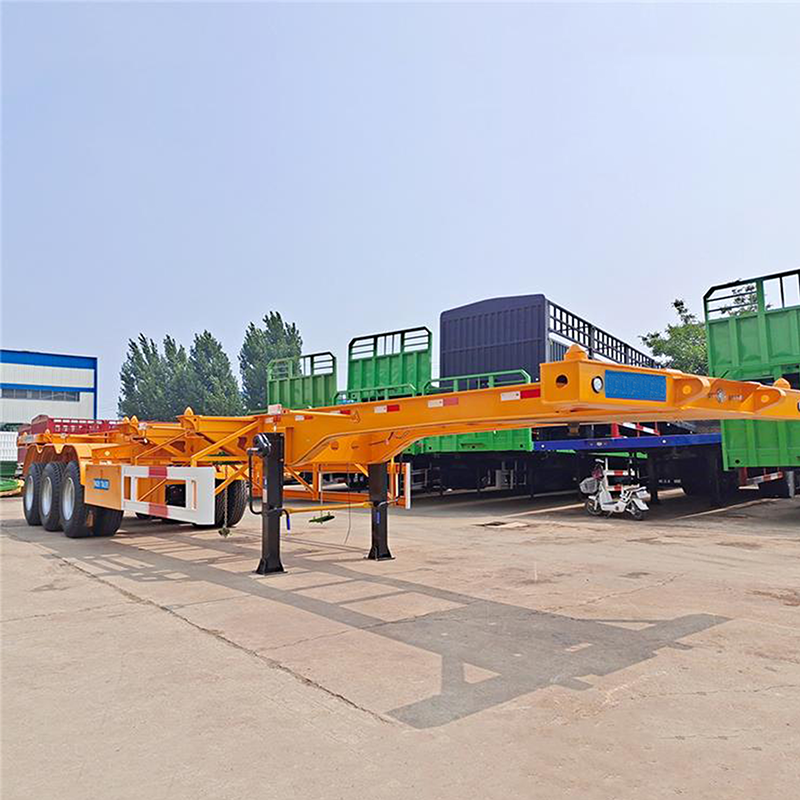

A skeletal semi-trailer, often called a skeleton trailer, is a lightweight frame specifically designed to transport shipping containers. Unlike flatbed trailers, it lacks a solid floor, which reduces weight and improves fuel efficiency. Its primary function is to carry various container sizes securely, making it vital in global logistics and intermodal transportation.
These trailers accommodate standard container sizes such as 20-foot, 30-foot, 40-foot, and 45-foot, including ISO intermodal containers. The skeletal design ensures flexibility, allowing a single trailer to carry one large container or multiple smaller ones by adjusting locking mechanisms.
The trailer's frame consists of several main parts:
Longitudinal Beams: These run along the trailer’s length and are typically I-shaped steel beams, welded for strength and durability.
Cross Beams: Positioned perpendicular to longitudinal beams, they form the skeleton’s framework and provide support points for containers.
Front and Rear End Beams: These rectangular sections add structural integrity at the trailer’s ends.
Container Locking Devices: Known as twistlocks, these secure containers at the corners. A skeletal trailer may have between four to twelve twistlocks, enabling various container configurations.
Support Devices: These include single-acting or linkage types that stabilize the trailer when detached from the tractor unit. They consist of support plates, screw transmission mechanisms, and control handles.
Suspension Systems: Options range from single to triple axles, often equipped with air suspension for smoother rides and better load management. Some models include lifting axles or sliding bogies to optimize weight distribution.
Spare Wheel Carriers: Usually two sets, mounted on each side, equipped with mechanisms to lift and store spare tires conveniently.
The frame is assembled and welded on a special positioning platform, ensuring precise alignment and high strength. The design balances lightweight construction with the ability to bear heavy loads, enhancing fuel economy without sacrificing safety.
Manufacturers use medium-tensile or high-tensile steel plates to build the frame. High-tensile steel allows for thinner, lighter beams while maintaining strength. This reduces the trailer's weight to as low as 4,000 kg, increasing payload capacity and lowering operational costs.
The welding process, often submerged arc welding, ensures strong joints that withstand the stresses of long-distance hauling and heavy container weights.
Note: Proper placement of containers on twistlocks is crucial to maintain balance and prevent rollover risks during transport.
Skeletal semi-trailers are designed to carry various standard container sizes, making them highly versatile. Common container lengths include:
The trailer frame usually features multiple twistlocks—locking points that secure containers at their corners. A skeletal trailer can have between four to twelve twistlocks, allowing it to carry one large container or multiple smaller ones. For example, it can transport a single 40-foot container or two 20-foot containers simultaneously.
Twistlocks are often positioned at different points along the trailer to accommodate various container lengths. Some trailers have hidden or retractable twistlocks that can be lowered or raised depending on the container size. This flexibility helps optimize load distribution and center of gravity, which is crucial for safe transport.
Skeletal semi-trailers come with different axle configurations depending on their intended use and load requirements. The number of axles can range from two to four:
Two-axle trailers: Suitable for lighter loads or empty container transport.
Three-axle trailers: Common for standard container hauling, balancing weight and maneuverability.
Four-axle trailers: Used for heavier loads or longer containers, often featuring a self-steering rear axle to reduce tire wear.
Axle types vary between single and dual wheels, and braking systems can be either disc or drum brakes. Many modern skeletal trailers use air suspension systems rather than mechanical ones. Air suspension offers smoother rides, better load management, and adjustable ride height, improving safety and comfort.
Some trailers include lifting axles, which can be raised when not needed to reduce tire wear and improve fuel efficiency. Others have sliding bogies, allowing axle groups to move forward or backward to optimize weight distribution across axles.
These variations enable operators to select skeletal trailers tailored to specific transport needs, whether carrying full containers, empty ones, or specialized cargo.
Tip: When selecting a skeletal semi-trailer, consider container size compatibility and axle configuration to optimize load safety, fuel efficiency, and regulatory compliance.
The twistlock is the key device securing containers to a skeletal semi-trailer. It fits into the corner castings of containers, locking them firmly in place. Each container requires four twistlocks—one at each corner—to ensure stability during transit.
Skeletal trailers come equipped with multiple twistlocks, usually between four and twelve. This setup allows loading different container sizes, such as:
Some twistlocks are fixed, while others are retractable or hidden, letting operators adjust their positions for various container lengths. When loading a smaller container, intermediate twistlocks can be lowered below the trailer’s platform, creating space and supporting the trailer when disconnected from the tractor.
Proper engagement of twistlocks is critical. If not fully locked, containers risk shifting or detaching, causing accidents or cargo damage. Operators must visually check twistlocks after loading and periodically during long hauls.
Loading containers onto a skeletal trailer requires heavy machinery. Common equipment includes:
Sideloader: A truck-mounted crane system that can load and unload containers from the side. It offers flexibility, especially in tight spaces, and allows self-loading without external cranes. Operators must complete sideloader training to use this equipment safely.
Reach Stackers: Mobile cranes designed to lift containers and place them onto trailers quickly.
Forklifts: Used mainly for lighter or smaller containers but limited by container weight and size.
Straddle Carriers: Large machines that lift containers from above and move them over trailers or storage areas.
Overhead Cranes: Common in ports and container yards, lifting containers vertically onto trailers.
Operators must consider the trailer’s maximum load capacity during loading. Overloading or uneven weight distribution can cause stability issues or legal violations. The load plate on the trailer specifies maximum gross vehicle mass (GVM), axle weight limits, and other restrictions.
Using sideloaders or cranes requires coordination between the equipment operator and truck driver to ensure smooth and safe container placement. The container should be centered over the twistlocks to maintain balance and reduce rollover risks.
Tip: Always double-check that twistlocks are fully engaged and locked before transport to prevent container movement and ensure road safety.
Skeletal semi-trailers have specific load capacities defined by several factors. The maximum gross vehicle mass (GVM) depends on the trailer's design, axle ratings, and legal limits set by transport authorities. Operators must always check the load plate, which states the trailer's maximum allowable weight and axle loads.
Proper load distribution is essential to maintain stability and avoid overloading any axle. Containers should be positioned so their weight is evenly spread across the trailer. For example, a 20-foot container is best centered, not placed too far forward or backward. When carrying multiple containers, the combined weight must be balanced to prevent excessive pressure on any axle group.
Failure to comply with load limits can lead to legal penalties, increased tire wear, and mechanical failures. Overloaded trailers risk structural damage and reduce braking efficiency, increasing accident chances.
Rollover is a critical safety concern for skeletal semi-trailers due to their high center of gravity when loaded with containers. Improper loading, sudden maneuvers, or uneven road surfaces can cause instability.
To reduce rollover risks:
Ensure containers are securely locked using twistlocks.
Distribute weight evenly along the trailer’s length and width.
Avoid overloading or stacking containers beyond the trailer's design limits.
Use trailers equipped with air suspension to improve ride stability.
Adhere to speed limits, especially on curves and turns.
Regularly inspect suspension, tires, and locking mechanisms for wear or damage.
Training drivers on safe loading practices and vehicle handling is vital. Awareness of axle weight limits and understanding how load shifts during transit affect stability help prevent accidents.
Tip: Always verify container weight and position against the trailer's load plate to ensure balanced distribution and reduce rollover risks during transport.
Skeletal semi-trailers mainly haul shipping containers, making them essential in global trade and logistics. Their lightweight frame lets them carry heavy containers efficiently, helping reduce fuel costs. These trailers fit standard container sizes like 20-foot, 30-foot, 40-foot, and 45-foot units, including ISO intermodal containers.
Besides container transport, skeletal trailers serve other purposes. They can be adapted as hook loaders for carrying skips or other cargo types when fitted with the right accessories. Some operators use them for timber hauling by adding timber bunks and side restraints. Others customize skeletal trailers with chiller units for refrigerated loads or modify them for off-road use with specialized suspensions and floor protection.
This versatility means skeletal semi-trailers fit many industries beyond shipping. Construction, waste management, and agriculture sectors often rely on them for transporting bulky or heavy goods that fit container dimensions or require frame support.
Skeletal trailers come with features tailored to specific industry needs:
Side Loaders: Equipped with hydraulic cranes on the trailer sides, these allow self-loading and unloading without external cranes. Ideal for sites with limited space or no lifting equipment.
Extendible Frames: Some trailers have extendible sections and flip-up twistlocks to carry longer containers or unusual cargo sizes.
Adjustable Suspension: Air suspension systems with adjustable ride height improve handling, especially on rough terrain or uneven roads, benefiting industries like forestry or mining.
Sliding Bogies and Lifting Axles: These help optimize axle load distribution and reduce tire wear, crucial for heavy or uneven loads.
Spare Wheel Carriers: Mounted on both sides, they provide quick access to spare tires, reducing downtime during long hauls.
These specialized features enhance trailer flexibility, safety, and efficiency. Operators can select or modify skeletal trailers to meet precise transport demands, improving productivity and reducing operational costs.
Tip: Choose skeletal semi-trailers with industry-specific features like side loaders or extendible frames to boost efficiency and adapt to unique cargo needs.
Skeletal semi-trailers offer several benefits that make them popular in container transport:
Lightweight Design: Their open frame reduces trailer weight, allowing more payload and better fuel efficiency.
Versatility: Multiple twistlock positions let operators carry different container sizes and configurations on one trailer.
Fuel Savings: Less weight means trucks use less fuel, lowering operating costs.
Easy Loading and Unloading: The skeletal frame provides clear access for cranes, sideloaders, or reach stackers.
Flexibility in Axle Configurations: Options like lifting axles and sliding bogies improve load distribution and tire wear.
Durability: Made with high-tensile steel and strong welding, they withstand heavy loads and rough conditions.
Specialized Features: Some models include side loaders or extendible frames, enhancing usability in specific industries.
Reduced Maintenance: Fewer structural parts compared to flatbeds mean less maintenance and repair.
These advantages help transporters maximize efficiency, reduce costs, and adapt to various cargo needs.
Despite their strengths, skeletal semi-trailers have some limitations:
Limited Cargo Types: Designed mainly for containers, they lack a solid floor, so they can't carry loose or irregular cargo.
Higher Initial Cost: Advanced features like air suspension or hydraulic side loaders increase purchase price.
Load Stability Concerns: Improper loading or unsecured containers can lead to shifting or rollover risks.
Complex Loading Equipment Needed: Using sideloaders or cranes requires trained operators and additional equipment.
Regulatory Compliance: Operators must strictly follow weight and axle load limits to avoid penalties.
Maintenance of Locking Devices: Twistlocks need regular inspection and maintenance to ensure container security.
Potential for Overloading: Lightweight design may tempt overloading, risking trailer damage and safety hazards.
Understanding these drawbacks helps operators plan and operate skeletal trailers safely and effectively.
Tip: Regularly inspect twistlocks and suspension systems to maintain safety and avoid costly downtime.
Skeletal semi-trailers are lightweight frames designed for transporting shipping containers efficiently. They offer versatility with multiple twistlock positions, enabling secure transport of various container sizes. Their lightweight design enhances fuel efficiency, making them vital in logistics. As transportation needs evolve, skeletal trailers will continue to play a crucial role in global trade.
Boca offers innovative solutions, ensuring high-quality skeletal trailers that provide exceptional value and adaptability for diverse cargo needs.
A: A skeletal semi-trailer is primarily used for transporting shipping containers. Its lightweight frame and twistlock mechanisms allow it to carry various container sizes securely, making it essential in logistics and intermodal transportation.
A: The skeletal semi-trailer improves fuel efficiency due to its lightweight design. Without a solid floor, it reduces overall weight, allowing trucks to consume less fuel during transport.
A: Twistlocks are crucial for securing containers on a skeletal semi-trailer. They lock containers at the corners, ensuring stability during transit and preventing shifting or detachment.
A: Benefits of using a skeletal semi-trailer include its lightweight design for better fuel efficiency, versatility in carrying different container sizes, and specialized features like adjustable suspension for improved handling.
A: Unlike a flatbed trailer, a skeletal semi-trailer lacks a solid floor, making it lighter and more fuel-efficient. It is specifically designed for container transport, while flatbeds can carry various cargo types.
