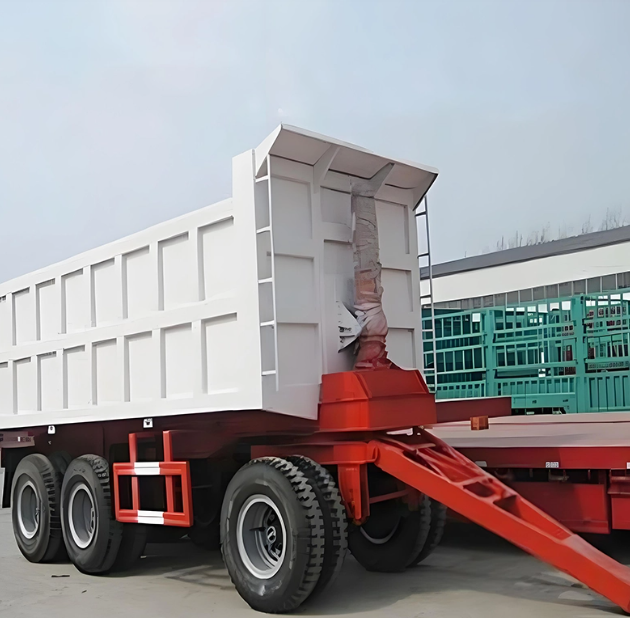

The 3 axle tipper dump drawbar trailer is a heavy-duty transport solution engineered for business clients in construction, mining, and logistics sectors. Designed to haul bulk materials including sand, gravel, demolition waste, and construction debris, this trailer combines robust performance with efficient unloading via its hydraulic tipping system. Unlike semi-trailers, the drawbar configuration ensures independent load-bearing and enhanced maneuverability, making it ideal for narrow job sites and long-haul operations . Equipped with a HYVA hydraulic cylinder and 45° tilt angle, it enables quick, labor-saving unloading while maintaining stability even under maximum payloads (20-50 cubic meters). As a trusted drawbar dump trailer manufacturer, we deliver a product that balances durability, safety, and operational efficiency for corporate buyers worldwide.
Constructed with high-strength Bao-steel (Q345B/T700 double plate), the trailer’s frame and dump box resist deformation and wear in harsh working conditions . The 14mm upper plate, 16mm bottom plate, and 8mm middle plate enhance load-bearing capacity, while abrasion-resistant linings reduce material sticking and extend service life.
Featuring premium FUWA/BPW axles and air dual braking system, the heavy-duty drawbar dump trailer ensures reliable stopping power even with full loads . The heavy-duty mechanical suspension (or optional air bag) absorbs road vibrations, while fully automatic production processes guarantee consistent structural integrity—reducing downtime by 40% compared to standard trailers.
Powered by a HYVA cylinder (max working pressure 250 bar), the hydraulic lifting system enables smooth 45° tilting for rapid unloading . This industry-leading component reduces oil consumption by 15% and extends service intervals, lowering long-term operational costs for business clients.
With adjustable dimensions (7600×2550×2200mm customizable) and payload capacities (20-50 cbm), the trailer adapts to specific transport needs . Options include zinc-ion alloy bottom plates (2mm/3mm) and tailored suspension systems, ensuring compatibility with diverse job site requirements.
HYVA telescopic cylinder with multi-stage design for stable lifting
45° maximum tilt angle for complete material discharge
Anti-leakage hydraulic lines with pressure relief valves
Rigid steel drawbar with pivoting linkage for enhanced maneuverability
Heavy-duty pintle hook coupling for secure towing
Integrated electrical and air connections for synchronized braking
500mm beam height for superior rigidity
Double-plate Q345B/T700 construction resists impact
Removable sidewalls for flexible loading
3 axles×13/16Ton (FUWA/BPW customizable) for balanced weight distribution
Mechanical suspension (or air bag option) for rough terrain adaptability
12R22.5 tires with high load ratings
Specification | Details |
|---|---|
Trailer Type | 3 axles dump drawbar full trailer |
Bucket Capacity | 20-50 cubic meters |
Axles | 3 Axles×13/16Ton (FUWA/BPW/Customization) |
Hydraulic System | HYVA cylinder (250 bar max working pressure) |
Overall Dimensions | 7600×2550×2200mm (Customizable) |
Dump Box Material | Q345B/T700 double plate (Upper:14mm, Bottom:16mm, Middle:8mm) |
Bottom Plate | 2mm zinc-ion alloy / 3mm plain plate (Customizable) |
Sidewall Thickness | 4mm (Customizable) |
Braking System | Air dual braking with relay valve |
Suspension | Heavy-duty mechanical / Air bag / Bogies |
Tilt Angle | 45° |
Warranty | 5 years (key components) |
Delivery Time | 10-25 days |
For corporate buyers seeking reliable bulk transport equipment, our 3 axle tipper dump drawbar trailer stands out with:
5-year warranty covering axles, hydraulic system, and frame—exceeding industry standards
Global supply chain: Exported to 40+ countries (Russia, Australia, Africa, Southeast Asia) with 2000+ units annually
24/7 after-sales support and spare parts delivery to minimize operational disruption
ISO-certified production with 100% pre-delivery stress testing
Customization expertise: Tailor dimensions, payload, and components to your industry’s unique demands
We ensure 10-25 days of production and delivery, with expedited options available for urgent orders. Global shipping logistics are optimized for business clients to meet project timelines.
Yes. The dump box can be modified with specialized linings for abrasive materials (e.g., mining ores) or sealed designs for moisture-sensitive cargo. We also offer adjustable sidewalls for irregular bulk goods.
The warranty includes core components: HYVA hydraulic cylinder, FUWA/BPW axles, braking system, and frame structure. Routine maintenance parts (tires, seals) are covered for 1 year.
Absolutely. The heavy-duty suspension system and reinforced frame are engineered for rugged job sites. Optional air bag suspension further enhances stability on uneven surfaces, protecting both cargo and equipment.
